SuperNOVA

Precise blood component separation for reliable workflows and consistent results

Flexible Programmable Applications
Contains unlimited number of programs, fully optimized according to the customer's applications.
Data Management
Records critical separation parameters for quality assurance and traceability.
Easy Remote Access
Possibility of remote maintenance, diagnosis, and service worldwide.
Double Press System
Besides forward pressing, it can retract to squeeze the SAGM bag for faster SAGM transfer into the motherbag.

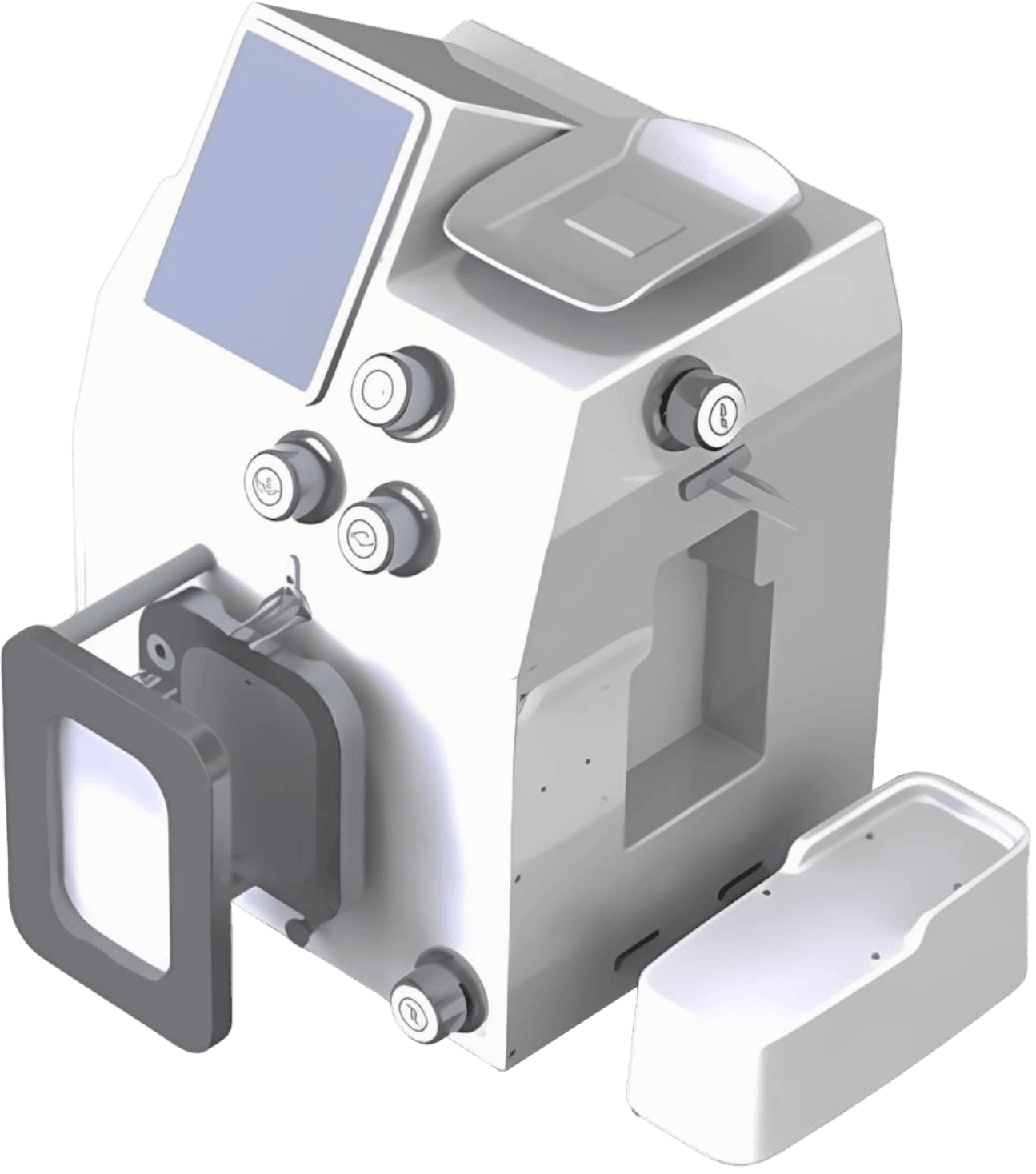

Sophisticated motor driven blood component separator

Our premium blood separator combines motor-driven plates, an intuitive touchscreen, and an integrated barcode scanner with sensitive sensors to deliver maximum blood product yield with minimal risk. It ensures exceptionally low RBC hemolysis, superior plasma and platelet quality, and outstanding platelet recovery even from low-volume buffy coats such as cord blood application.

Designed as a true time saver, it removes plasma from Top/Top systems in as little as 50 seconds and completes Top/Bottom processes in just 1.5–3 minutes, all while maintaining excellent QC performance. Every feature is engineered to streamline workflows and elevate the consistency of blood product standardization.

Its innovative single-separator within an ergonomic housing provides excellent space efficiency and operator comfort. Highly configurable and compatible with all blood bag types, it offers automatic cannula breaking, secure Wi-Fi/LAN connectivity, and robust remote diagnostics, ensuring advanced, reliable, and future-ready performance.

Available features and options

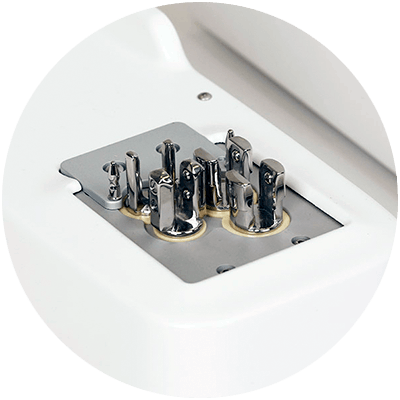

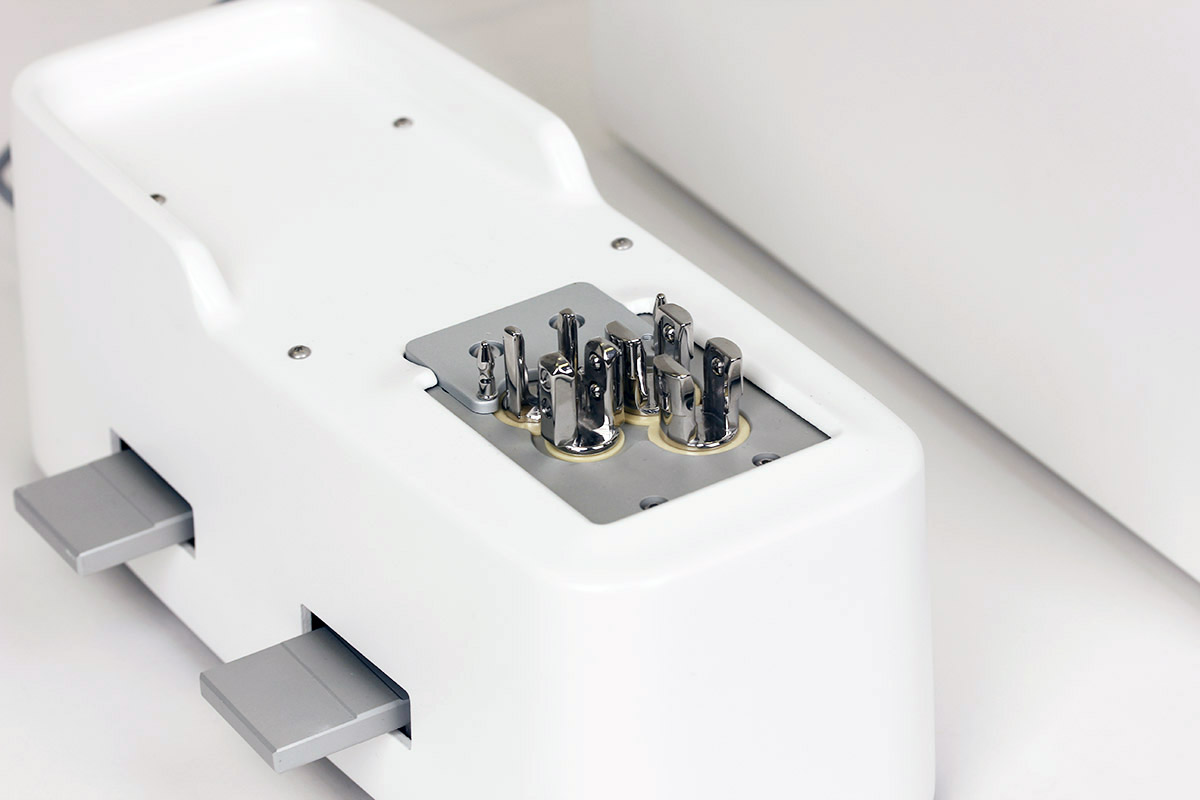

Automatic Valve Breakers
Automatic valve breakers for all products and adjustable for any blood bag type.

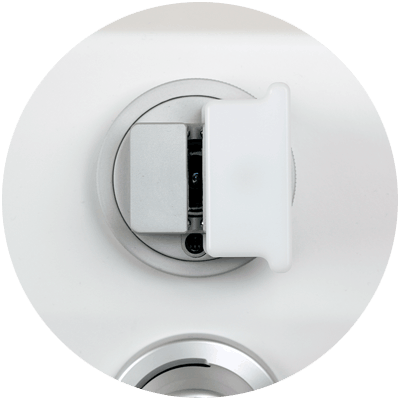

RGB Stopping Sensor
Special RBC stopping sensor, to increase platelet recovery rate.

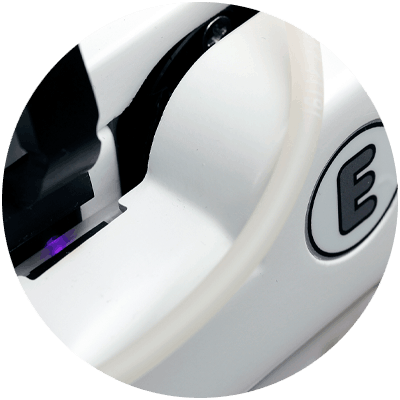

Lipemic Sensor
Storing Lipemia Index in data base with data export. Used to identify and control Lipemic Plasma.

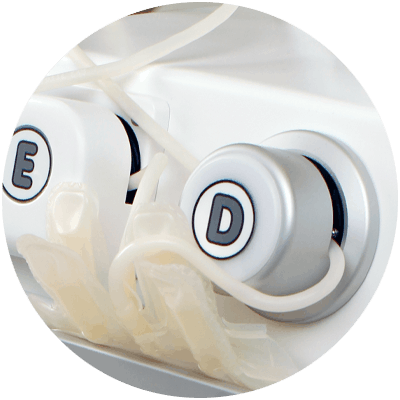

Illuminated Clamp with tube detection
Provide clear visual feedback on the extraction status and confirm correct tube positioning, ensuring a smoother and more intuitive workflow.

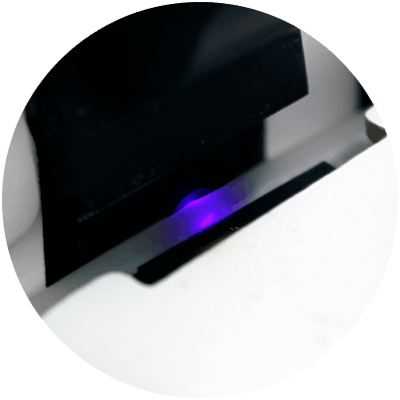

Optical Sensors
4 adaptive optical sensors, for RBC detection (2 Main and 2 safety sensors) for all tube types and all colors of plasma and RBC.

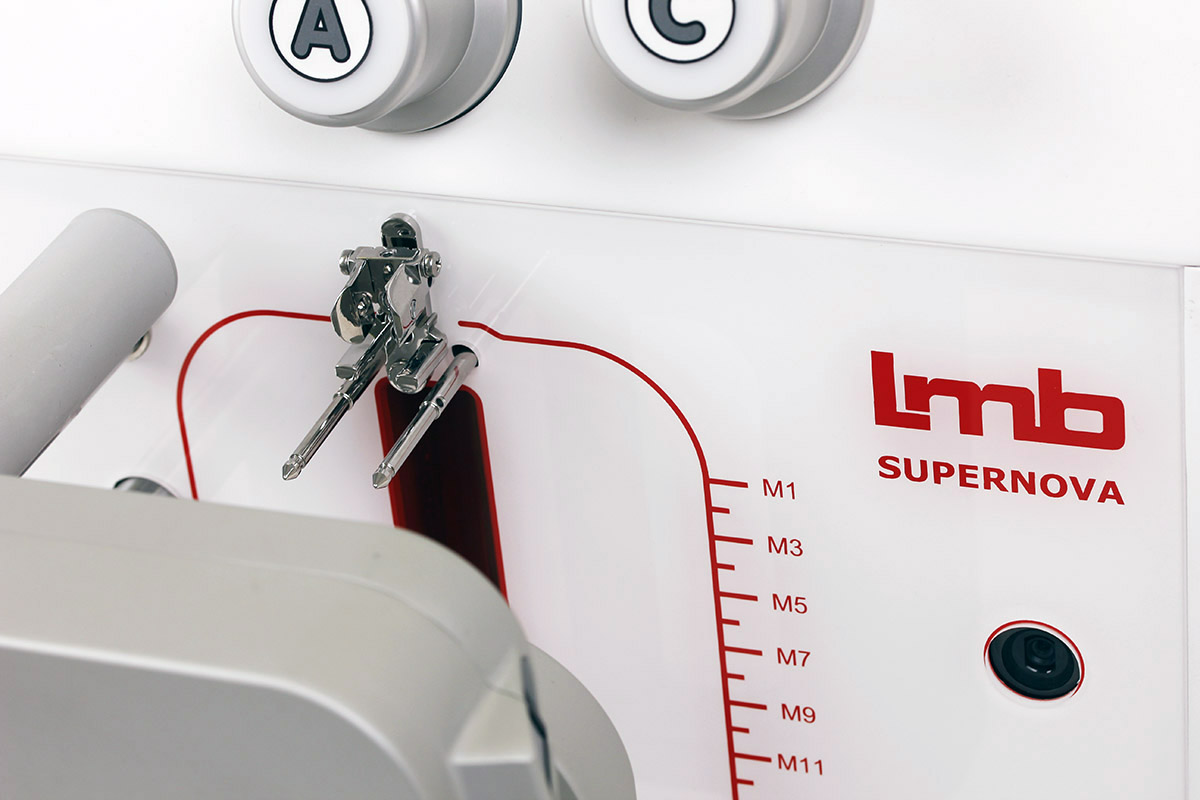

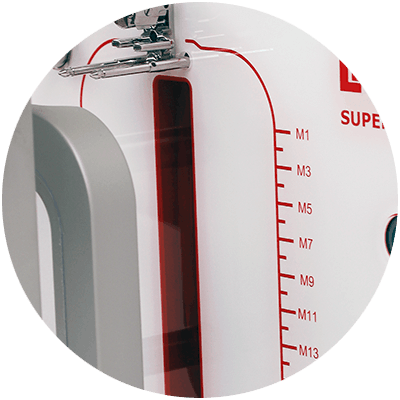

Level Sensors
16 adjustable high-resolution sensors for HCT detection, and Buffy coat monitoring covering whole blood bags.

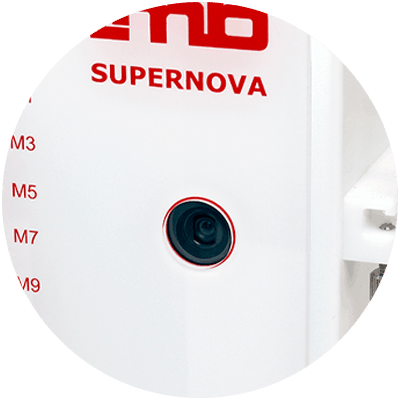

Documentation Camera
A high-resolution camera captures the centrifuged blood bag, enabling quick and accurate visual assessment of centrifugation quality.

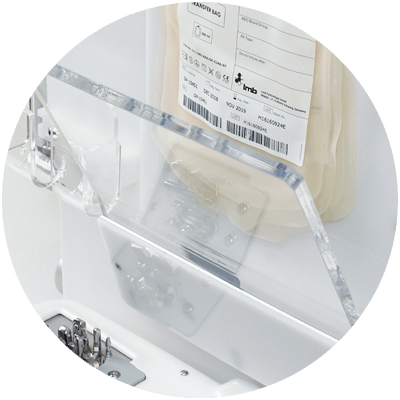

Motor Driven Side Press
Automatically removes residual air from the plasma bag after processing, helping prevent bag damage during freezing.

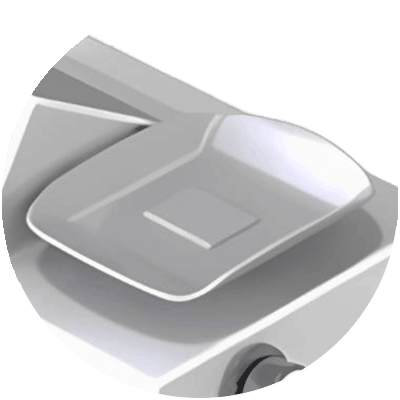

Precise Balances
Integrated high-accuracy balances continuously monitor bag weights throughout processing to ensure precise, program-controlled separation.

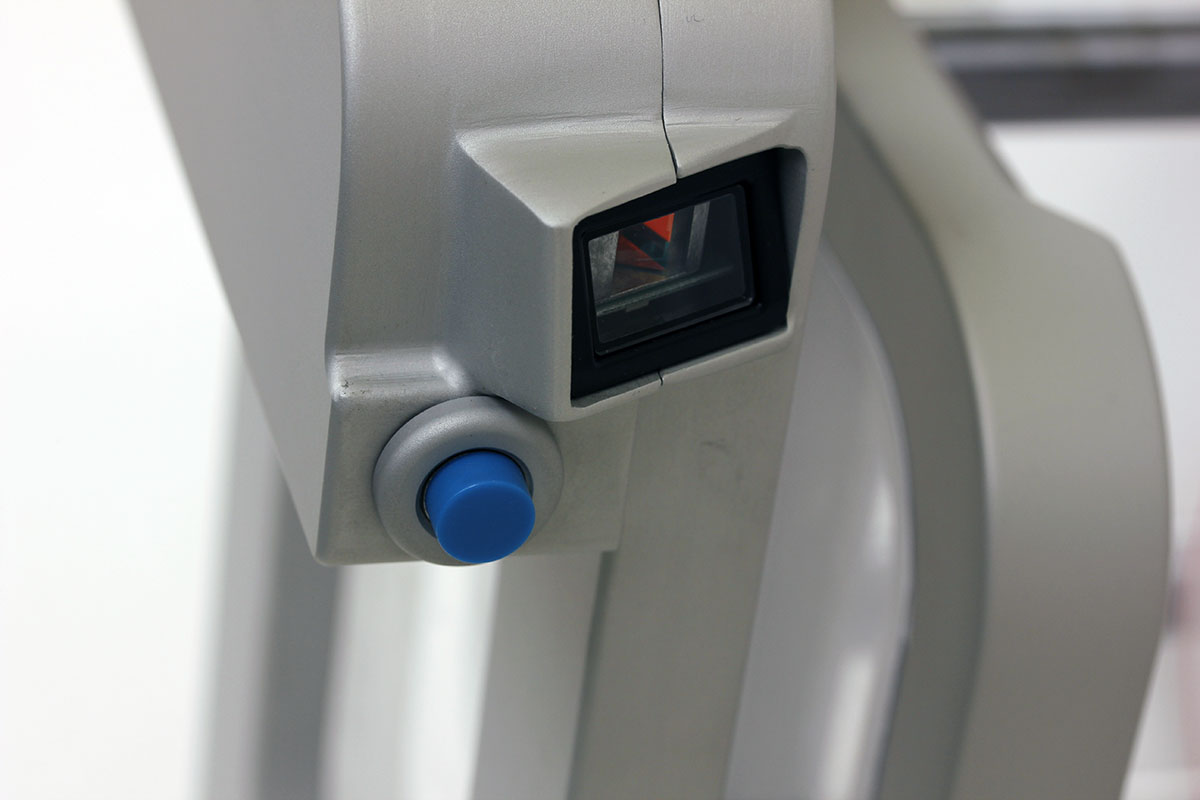

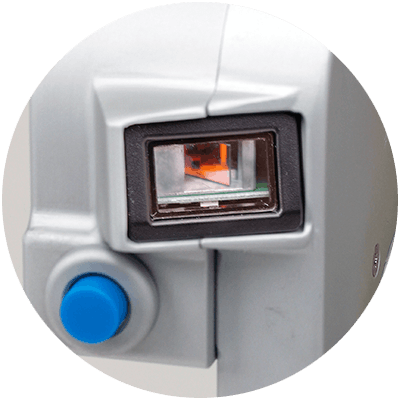

Barcode Scanner
An internal or external barcode reader supporting multiple standards enables fast and reliable identification of blood bags.

Gallery

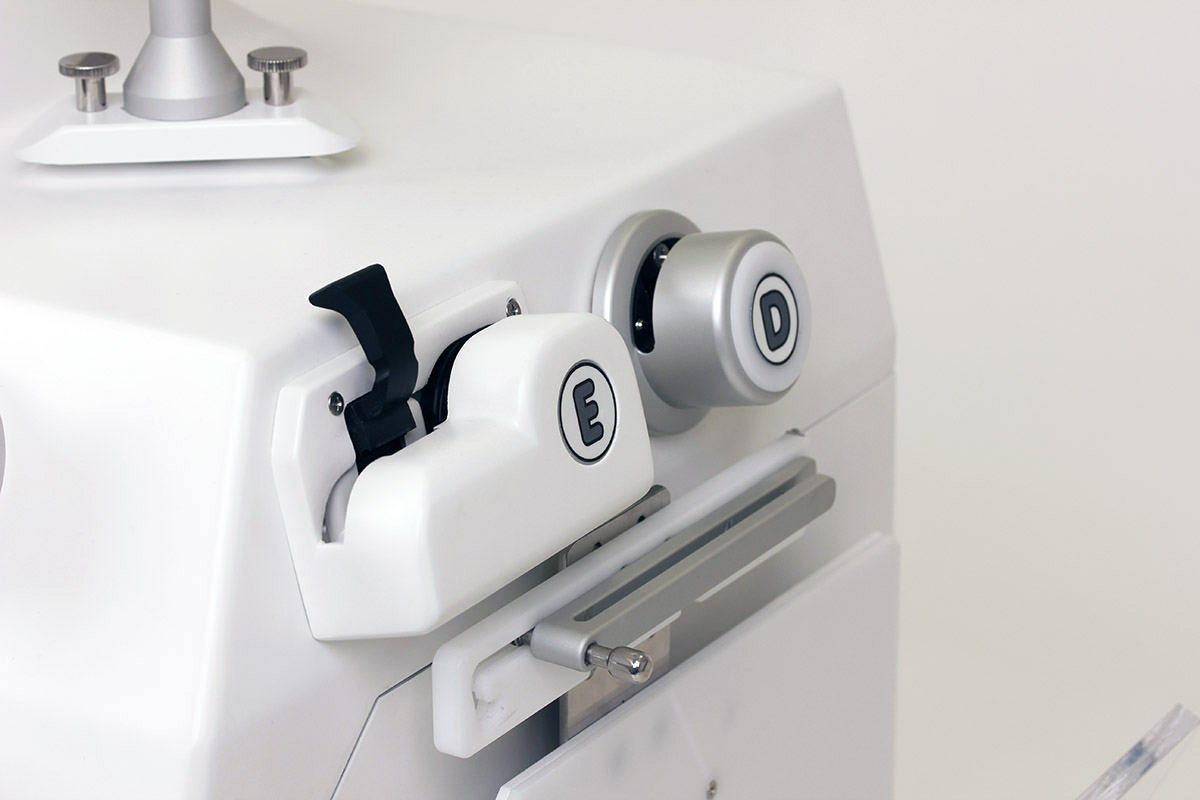

Lipemic Sensor

Lipemic Sensor
Automatic Valve Breakers

Automatic Valve Breakers
Level Sensors

Level sensors
Integrated Barcode Scanner

Integrated Barcode Scanner

SuperNOVA Configurations

Basic SN-10101 Basic Plus SN-10102 Enhanced SN-10103 Enhanced RFID
SN-10104		 Enhanced Plus SN-10105
High Precision Balances x4 √ √ √ √ √
Sealing Clamps x5 √ √ √ √ X
Sealing Clamps x6 X X X X  √
LCD Color Touch Screen with guiding mode √ √ √ √ √
English Language √ √ √ √ √
16 Level Sensors √ √ √ √ √
Double Direction Press √ √ √ √ √
Illuminated Clamps with tube detection X √ √ √ √
Motor Driven Side Press X √ √ √ √
Automatic Mother bag breakaway X o √ √ √
Automatic Bottom breakaway X o √ √ √
SAGM Rod breakaway X o √ √ √
SAGM Press breakaway X o √ √ √
Integrated Barcode Scanner X X √ √ √
RGB Sensor X X o o √
Lipemic Sensor X X o o √
Documentation Camera X X o o o
External Barcode Reader o √ o o o
RF ID Reader X X X √ X
Illumination Ring for clamp A √ X X X X
Adjustable Pressing Plate X X o o √
Additional SAGM Rod o o o o o
Air Extraction Top Press o X X X X
Air Extraction Top Press with SAGM Rod o X X X X
Data Transfer application ERYSYS o o o o o
Bi-directional communication o o o o o
Splash Guard X X o o o
Plasma bag plexi holder X X o o o
Filter holder on SAGM Rod X X o o o
Filter holder at side X X o o o
International plugs o o o o o
Language package o o o o o
Customized Logo o X X X X
Colour option o X X X X

√ – standard  o – optional   X – not available
